Gas Concentration Detection
Common gas detection includes oxygen, hydrogen, methane, ethane, alcohol, formaldehyde, carbon monoxide, carbon dioxide, ethylene, acetylene, vinyl chloride, styrene, acrylic acid, etc. The instruments and tools for detection include portable gas detectors, handheld gas detectors, fixed gas detectors, and online gas detectors, etc. They mainly use gas sensors to detect the types and concentrations of gases present in a specific environment. The monitoring system is linked to enable immediate response to alarms through on-site sound and light, phone calls, text messages, WeChat, APP, etc., when the set value range is exceeded, allowing for timely detection and correction of leaks and deficiencies, and reducing or avoiding accidents.
6100 Series Gas Detection
Product Model: XH100-X (X represents the gas name)
Measurement Principle: Electrochemical, catalytic combustion, semiconductor
Measured Gas: Toxic and harmful, flammable and explosive gases
Response Time: < 15S
Detection Error: < ±5% F.S
Explosion-proof Grade: Exd II CT6

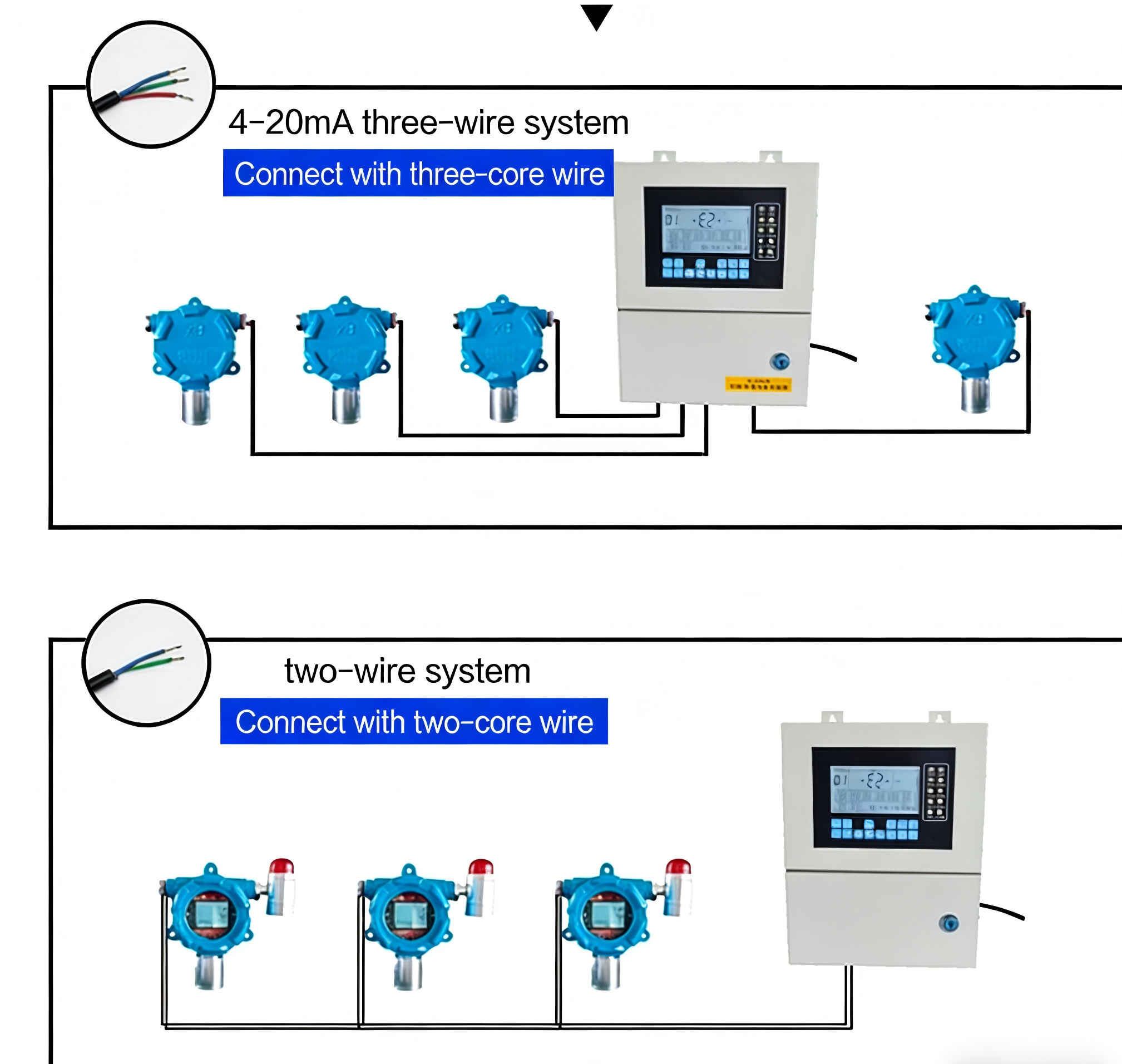

Output Interface: Three-wire system/Four-wire system/Relay
Display Method: LCD display
Alarm Method: Sound and light alarm
Alarm Value: Adjustable
Installation Method: Can be installed on walls or pipes
Protection Grade: IP65
Transmission Distance: Up to 2000 meters (used in conjunction with XH series controllers)
Required Power Consumption: < 2.5W (instantaneous peak)
Operating Temperature: -20℃ - 55℃
Operating Power Supply: 10VDC - 30VDC
Standard Signal Output: 4-20MA or RS485 (optional)
Alarm Relay Output: 1 channel 30V/2A.
