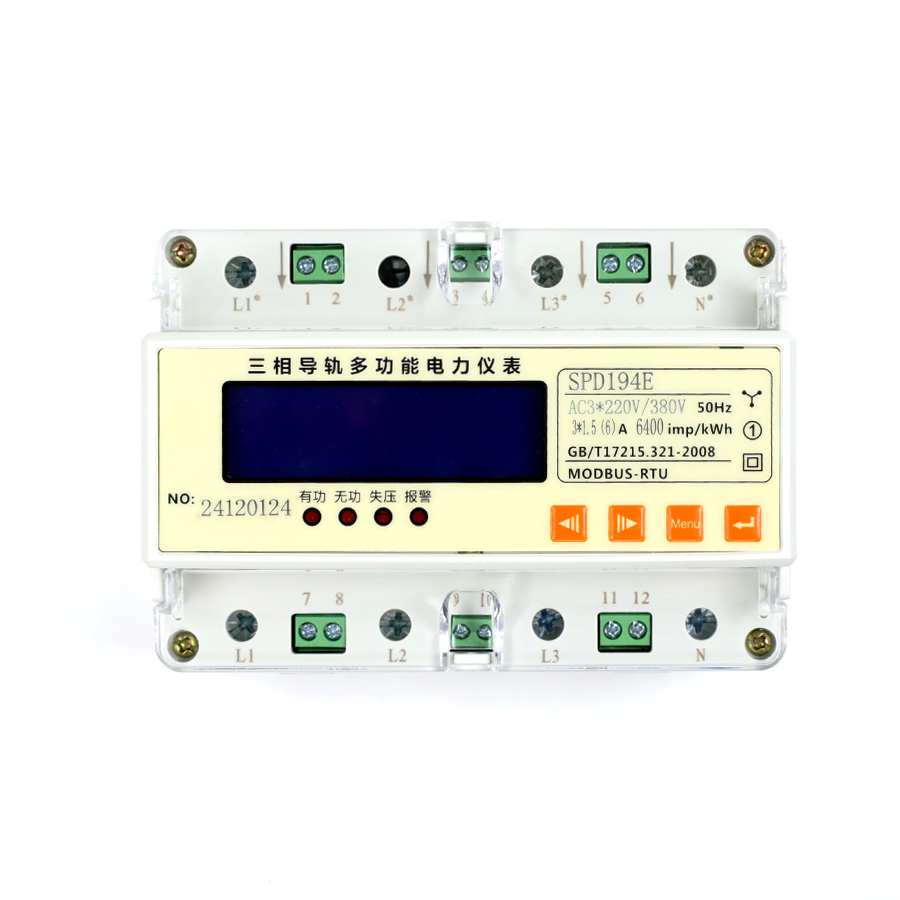

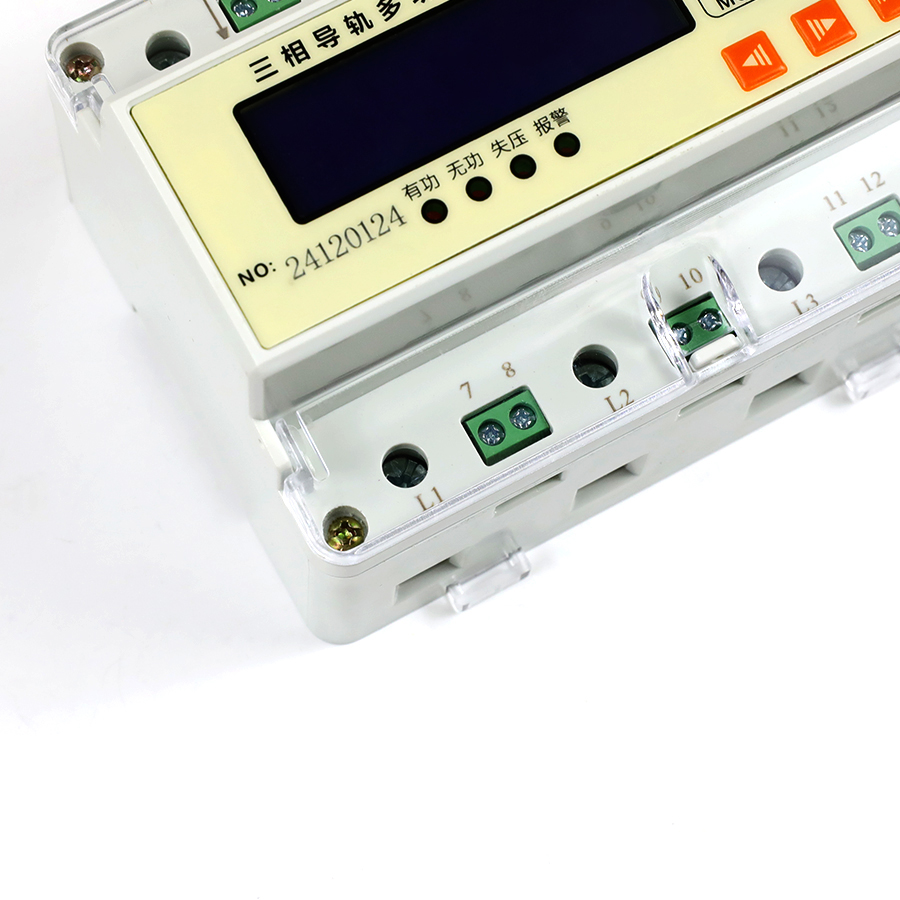

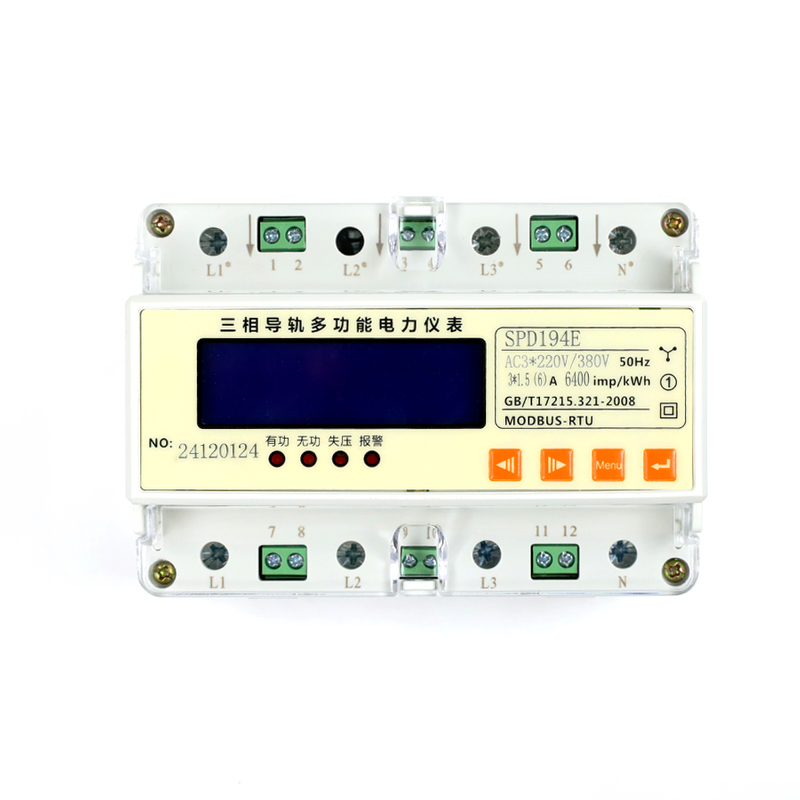

SPD194E
Speed
High Stability: It has higher stability and accuracy, with better anti-interference design, avoiding interference caused by various external factors, and is suitable for different scenarios.
Complete Functions: It can measure the voltage, current, frequency, power of the current phase. It can measure multiple electrical parameters such as grid current, voltage, power, power factor, frequency, and energy.
Construction and Installation: It is installed using a 35mm standard guide rail method.
Large Screen Display: It uses LCD display, which is intuitive for observation.
Service Life: After more than ten years of technical upgrade and optimization, with its outstanding reliability, the service life is long.
| Parameter Item | Specification |
|---|---|
| Product Size | 126×91×74mm (Length * Width * Height) |
| Voltage and Current | 3×220/380V, 1.5(6)A, 5(20)A, 10(40)A, 20(80)A |
| Accuracy Class | Active power 1.0 class, reactive power 2.0 class |
| Communication Interface | RS485, MODBUS-RTU (other protocols can be customized) |
| Working Voltage | Normal working voltage range: 0.9~1.1Un, limit working voltage range: 0.7~1.2Un |
| Pulse Output | Pulse width 80ms ± 20ms, optocoupler isolation, collector open-circuit output |
| Display Method | Special LCD display |
| Working Environment | Normal working temperature -10℃~+45℃, limit working temperature -20℃~+55℃, storage temperature -40℃~+70℃ |
| Relative Humidity | ≤95% (no condensation) |
Covering industries: finance, communication, government affairs, transportation, logistics, factories, warehouses, medicine, etc.
Application Scenarios: computer rooms, power distribution rooms, factories, workshops, laboratories, etc., such as computer room monitoring, power monitoring, security monitoring systems, anti-theft alarm systems, power environment monitoring systems, etc.
