High Stability: This product has high stability performance, ensuring signal collection and transmission, with strong anti-interference ability, filtering out various false alarms.

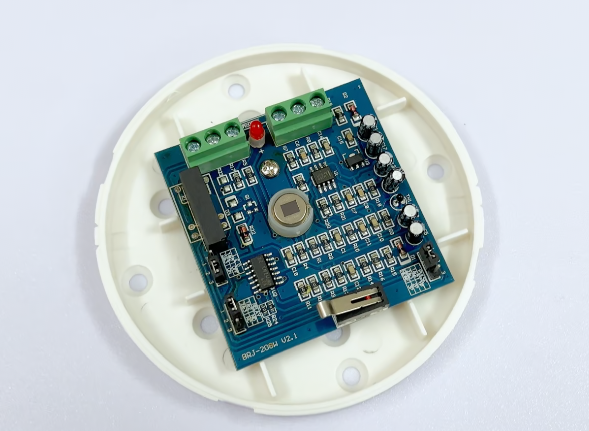

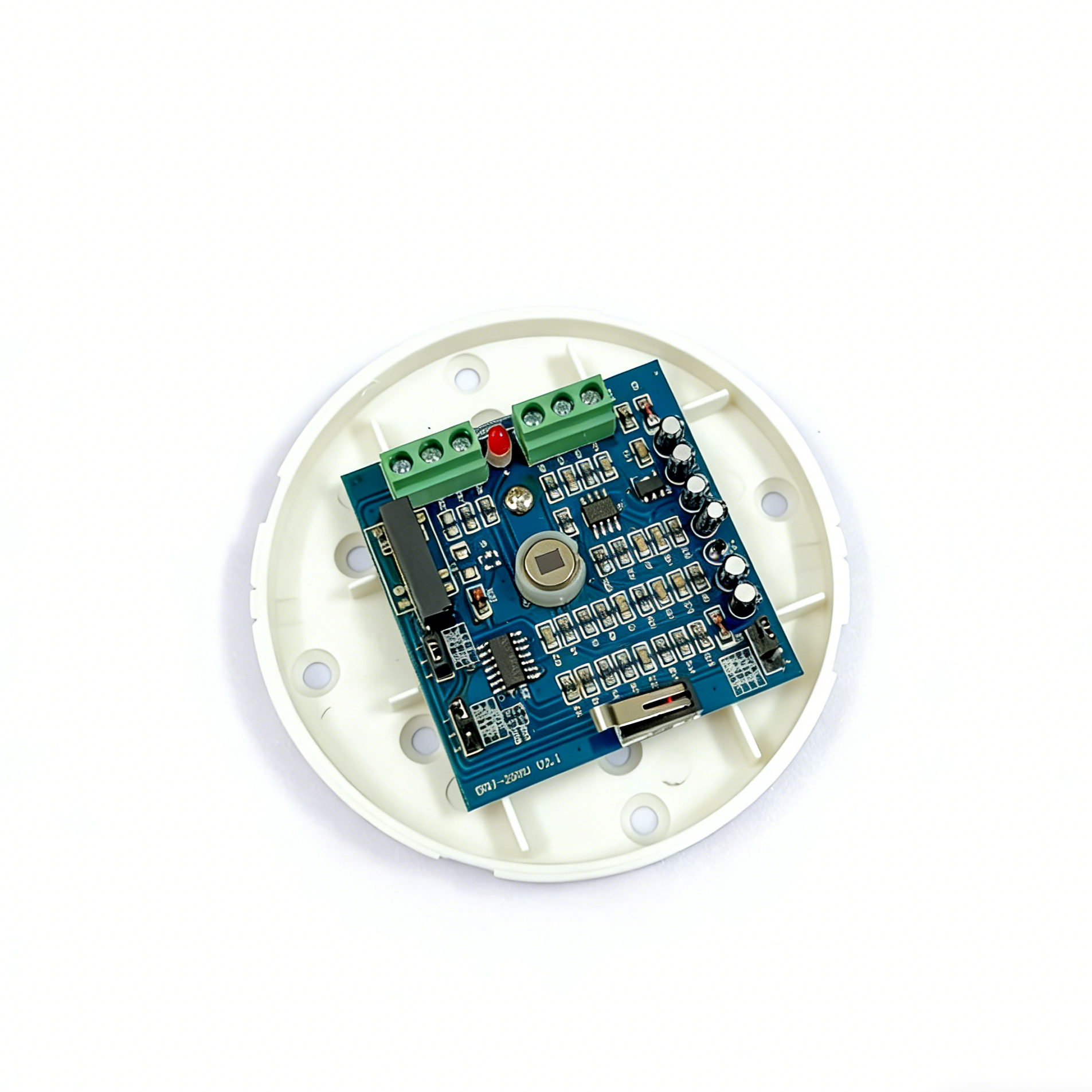

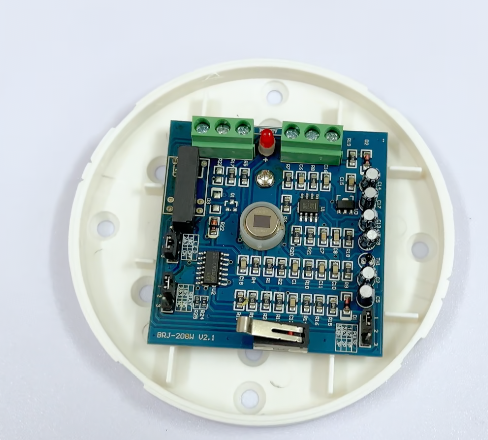

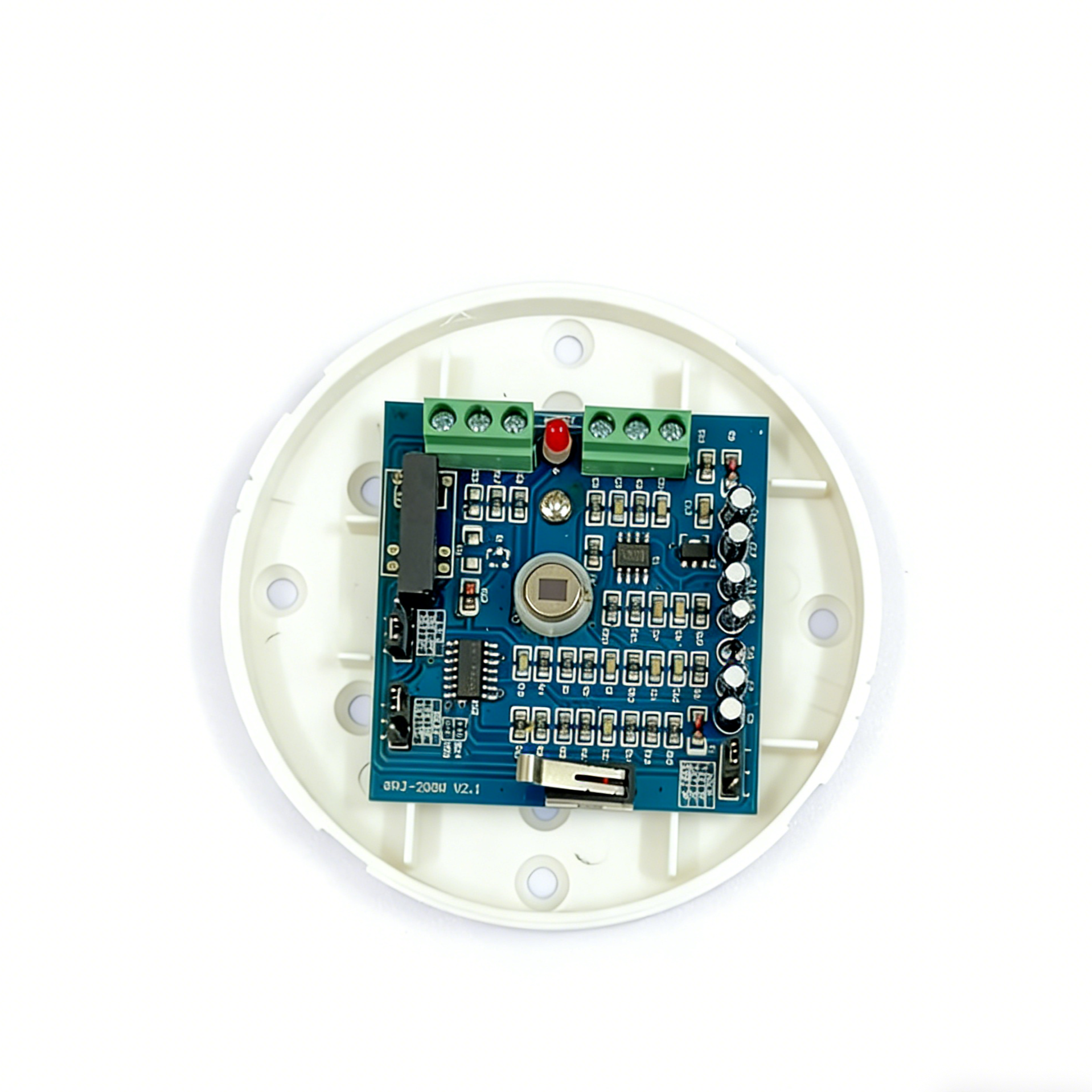

Service Life: Manufactured using SMT technology and real temperature compensation technology, with adjustable bipolar pulse counting, resistant to white light interference, radio frequency interference (20V/m - 1GHz), and Fresnel optical lens.

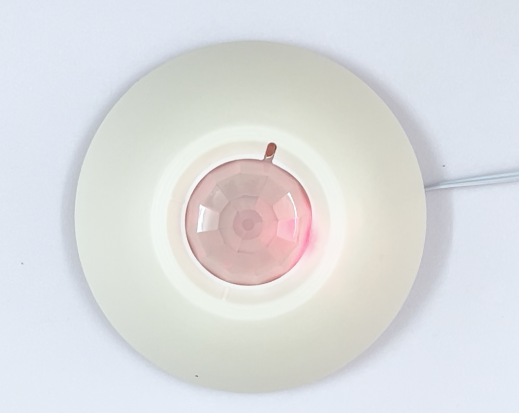

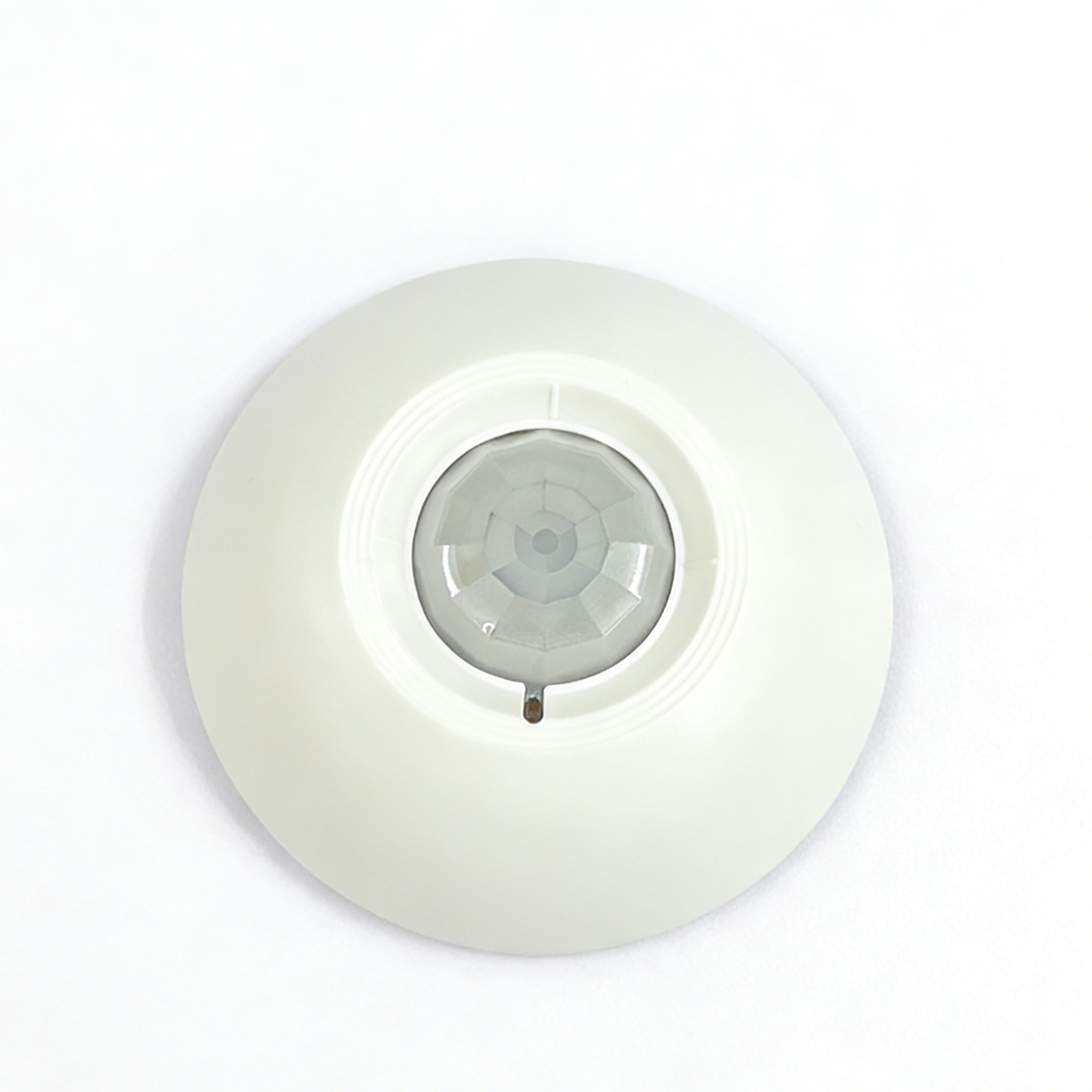

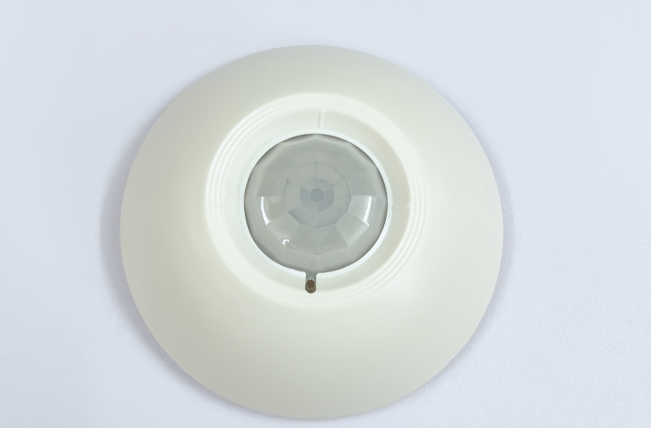

Installation: Standard ceiling mounting method, convenient for installation.
Parameter Item | Specification |
|---|---|
Product Size | 106*36mm (diameter*height) |
Working Voltage | DC9-16V |
Consumption Current | 18mA (DC12 when applicable) |
Detection Range | Diameter 8 meters (installation height at 36 meters), detection angle 360 degrees |
Self-Check Time | Approximately 60 seconds |
Working Temperature | -10℃~50℃ |
Environmental Humidity | Maximum 95%RH (no condensation phenomenon) |
Anti-RF Interference | 10MHz - 1GHz 20V/m |
Alarm Output | NC/NO selectable, contact DC28V 100mA |
Installation Method | Ceiling installation, installation height 2.5-6 meters |
Covering Industries: Public security, finance, national defense, communication, government affairs, transportation, logistics, factories, warehouses, agriculture, medicine, and many others.
Application Scenarios: Computer room, warehouse, power distribution room, factory building, workshop, laboratory, etc., such as PLC control systems, elevator control systems, air conditioning automatic control systems, traffic automation control, computer room monitoring, power monitoring, security monitoring system, anti-theft alarm system, power environment monitoring system, etc.
