The Importance of Installing Online Monitoring System for Batteries in Computer Rooms
Batteries are electrochemical devices for storing electrical energy and are also energy storage devices in power supply systems. When external power supply is interrupted, the power supply will automatically switch to the battery to ensure the continuous operation of the system and equipment. In computer room monitoring, the stability of battery performance is directly related to the safety of the entire power supply system. If not given due attention, it can easily lead to frequent accidents such as explosions and fires, affecting the normal operation of enterprises and causing serious losses. Therefore, choosing a scientific, effective and reliable battery monitoring system for management is the key to ensuring the stable operation of batteries.
I. Common drawbacks of traditional battery management:
1. When power outages or abnormal mains power occur in the computer room, the battery usage data is not monitored in real time, which can easily lead to over-discharge and damage of the backup battery, causing fires and explosions.
2. The cost of manual operation is high. It is necessary to have dedicated personnel on duty for management at all times, which leads to low management efficiency and hinders the detection of potential faults in the batteries.

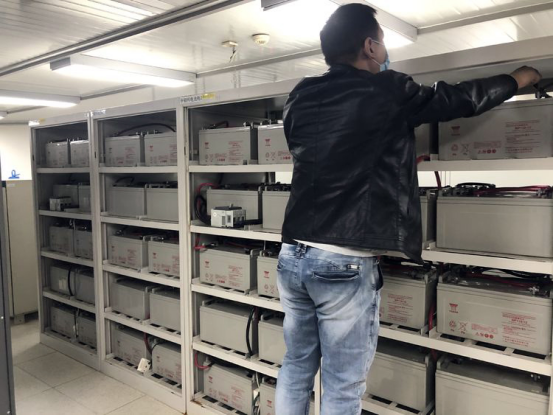

3. Relying solely on simple manual inspections can only monitor the surface conditions of the batteries, but it is unable to conduct detailed analysis and judgment of the internal operational data.
II. Importance of Online Monitoring of Computer Room Batteries:
1. Prevent accidents by monitoring batteries online. This allows for early warning and enables controlled management;
2. 24-hour online monitoring ensures accurate measurement data, allowing for real-time tracking of battery conditions, significantly reducing the need for manual maintenance;
3. It enables networked and automated management, facilitating remote monitoring;
4. It can accumulate operation data for batteries of different brands. Through big data analysis, it can facilitate future product selection;
5. It saves a significant amount of manpower and resources.

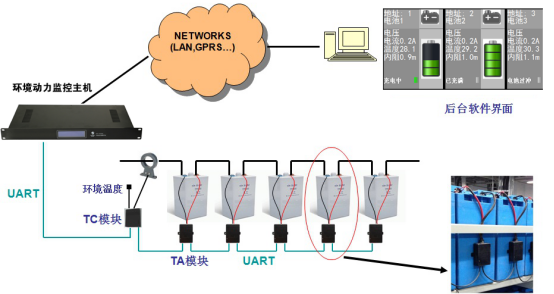

The Spidey Room Battery Online Monitoring System is a system with advanced technology, complete functions, comprehensive configuration, stable and reliable performance, and strong anti-interference ability. It can monitor the data of the room batteries in real time, issue early warnings, achieve controllable abnormal phenomena of the batteries, promptly handle potential or directly caused faults of the batteries, save operating costs, improve economic benefits, and ensure the normal operation of the room. The main functions of the system are: real-time monitoring of total voltage, total current, single cell battery voltage, single cell battery internal resistance, single cell battery temperature, environmental temperature, etc. Any parameter exceeding the threshold will automatically trigger an alarm and warn of deteriorating battery performance.
1. The hardware functions of the battery monitoring system:
1) Online monitoring of the voltage of each battery cell, the temperature of each battery terminal, and the internal resistance of each battery cell; the group voltage of the battery pack, the charging and discharging current, the environmental temperature; online monitoring of thermal runaway.
2. It can automatically and periodically measure the internal resistance of the battery without the need for manual intervention. It can automatically obtain the reference internal resistance value for each battery. After conducting automatic lateral and longitudinal analysis and comparison of the internal resistances, it can determine the quality of the battery.
II. Main analysis functions of the battery monitoring system:
1. Automatically analyze the remaining capacity of the battery
2. Analyze whether the battery is faulty or needs activation
3. Analyze the individual cell voltages during float charging to identify batteries that need charging
4. Analyze the individual cell voltages during float charging to identify batteries that are overcharged
5. Analyze the group voltage during float charging to determine if the charging voltage is too high or too low
