The temperature sensor of the Spide high-temperature probe
The high and low temperature sensor uses the DS18B20 temperature sensor probe to measure the temperature of the operating environment. It has high sensitivity and a wide measurement range, and is widely used in medical ultra-low temperature refrigerators, laboratory high and low temperature constant temperature boxes, industrial and mining enterprises, and other places that require temperature measurement and control.

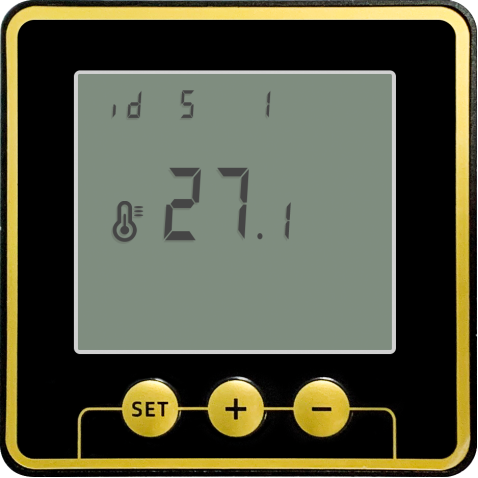

Main functional features: large-screen LCD display, 0.1 display accuracy, beautiful appearance, simple operation, RS485 signal output, up to 128 serial devices, convenient for remote monitoring system integration. It adopts industrial-grade electronic components and electromagnetic compatibility design, with protection functions such as surge protection, static protection, and EFT protection, stable and reliable. It interfaces with the dynamic environment monitoring system and temperature sensors, and displays the current temperature data and the status of one switch input in real time.According to the on/off status. Technical parameters: dimensions 80mm 80mm 80mm (length width height), working voltage DC12V, power consumption < 1W
Interface type is RS485 interface, data baud rate 4800bps, sensor working temperature -10℃ to 60℃, sensor working humidity 10% to 90%RH, no condensation, standard temperature sensor type DS18B20, temperature sensor detection range -55 to 125℃, temperature resolution 0.1℃, standard temperature sensor accuracy ±0.5℃ @ -10℃ to +85℃, temperature sensor connection line length 3 meters.
