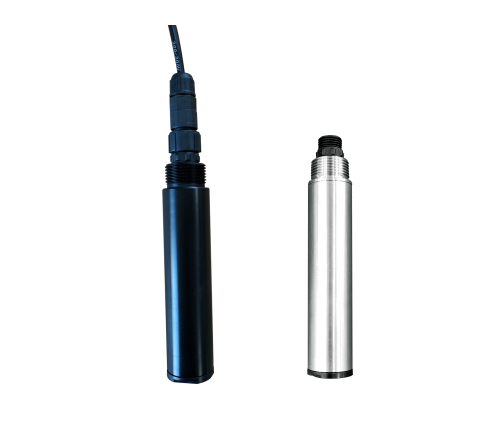

485 type turbidity transmitter ZD-N01-VL
I. Product Overview
Turbidity transmitter ZD-N01-VL is a basic type of conventional digital turbidity transmitter for water quality monitoring. It adopts the mature 90° scattering light principle and uses infrared LED light source and fiber optic light transmission path design method. An internal filtering algorithm is added to have strong resistance to external light interference. It is equipped with a built-in temperature transmitter and can automatically perform temperature compensation, suitable for online long-term monitoring of the environment.
II. Product Features
1. High stability: Industrial-grade electronic components, strong anti-interference ability, long lifespan and high stability.
2. Measuring range: 0-50NTU, 0-200NTU, 0-1000NTU, 0-4000NTU.
3. Communication protocol: 485 communication, standard ModBus-RTU protocol.
4. Waterproof grade: Waterproof grade IP68.
5. Automatic compensation: Filtering algorithm, automatic temperature compensation, suitable for online long-term detection environment.
III. Product Parameters
1. Product size: 134*30*30 mm.
2. Working voltage: 10-30V DC.
3. Average power consumption: 0.2W.
4. Interface type: 485 communication, standard ModBus-RTU protocol.
5. Measuring range: 0-50NTU, 0-200NTU, 0-1000NTU, 0-4000NTU.
6. Measuring accuracy: ±5%FS, ±0.5℃.
7. Measuring principle: 90° light scattering method.
8. Resolution: 0-50NTU, 0-200NTU and 0-1000NTU have a range of 0.01NTU, and the range of 0-4000NTU has a range of 1NTU.
9. Working environment: 0℃ - +40℃.
10. Waterproof grade: IP68.
11. Shell material: Corrosion-resistant plastic.
IV. Product Application Scenarios
1. Covers enterprises: Mainly applied in industrial, agricultural and other fields.
2. Application scenarios: Applied in industrial wastewater treatment sites such as sewage ponds, aeration ponds, pulp ponds, sedimentation ponds, etc., as well as some scenarios that require water quality turbidity detection.
