                              Video Surveillance Equipment Selection for Smart Campuses

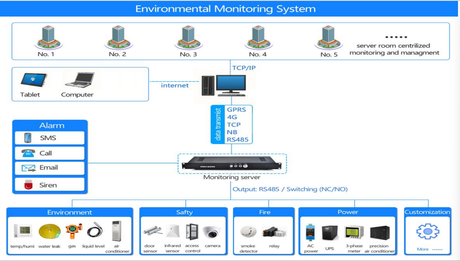

   With the rapid development of smart campus construction, video surveillance and environmental monitoring systems have become essential infrastructure for campus security management. This article analyzes how to scientifically select video surveillance equipment by integrating technical considerations with practical case studies.

   Switch Selection: The backplane bandwidth must support full-port line-rate forwarding. The calculation formula is: number of ports × port speed × 2 (full-duplex). For example, a 48-port gigabit switch requires at least 96 Gbps of backplane bandwidth. Packet forwarding rate: each gigabit port should achieve 1.4 Mpps per port; thus, a 24-port switch should support ≥35 Mpps, otherwise congestion risks may arise. Hierarchical design: large-scale campuses are recommended to adopt an access layer–aggregation layer–core layer architecture. For instance, among 500 cameras, one aggregation switch should handle approximately every 170 cameras, ensuring that each aggregation switch has a capacity of at least 680 Mbps.

   Advantages of All-Optical Networks: Fiber deployment can utilize multi-core POF (plastic optical fiber), which supports both power transmission and data transfer, offers strong anti-interference capability, and simplifies cabling. Optical switches: regional aggregation nodes should deploy devices supporting POF interfaces to enable optoelectronic conversion and network management functions.

  Front-End Device Configuration: Camera selection—high-definition cameras typically require a bitrate of 3–4 Mbps, so sufficient network bandwidth must be reserved (e.g., a 100-Mbps port provides about 60 Mbps usable bandwidth). Power supply methods: cameras using POF technology can transmit both power and data over the same cable, eliminating the need for separate power cabling.

  Clarity Misconceptions: Users often incorrectly attribute poor image quality to network issues when it actually stems from camera encoding capabilities. It is recommended to choose devices supporting H.265 encoding to reduce bandwidth consumption.

    Intelligent Expansion: AI analytics servers can be deployed at the aggregation layer to automatically detect abnormal behaviors. Remote management is achieved via a centralized video management platform in the main control room, enabling unified configuration of camera parameters and fault monitoring.

   Implementation Recommendations: Conduct phased testing, starting with pilot projects in single areas to verify device compatibility and POF power stability. Redundancy design: core layer switches should reserve more than 30% capacity to accommodate future expansion. By adopting scientific equipment selection and integrating all-optical networks, campus surveillance systems can achieve efficient, stable, and low-maintenance intelligent management.
