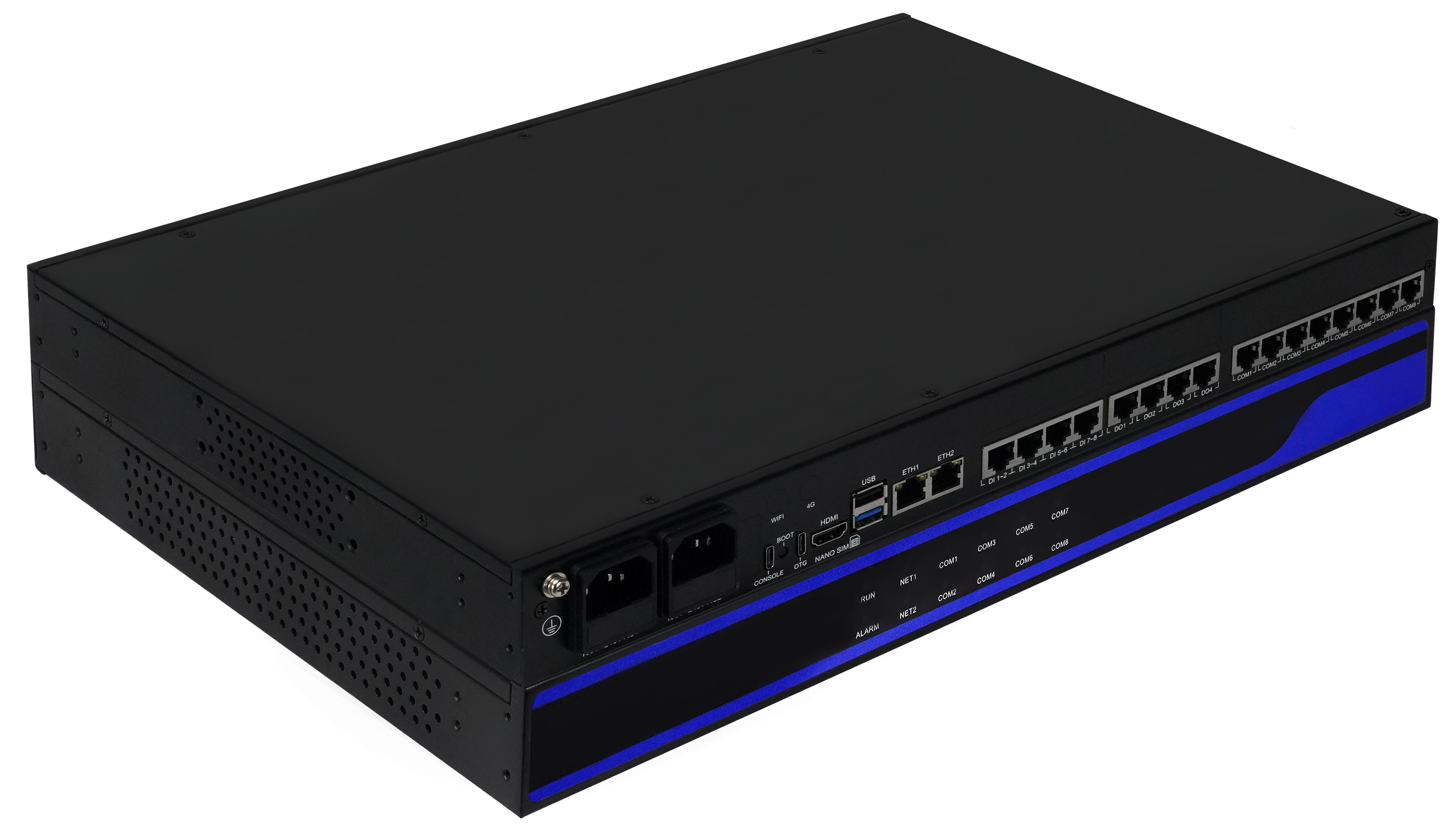

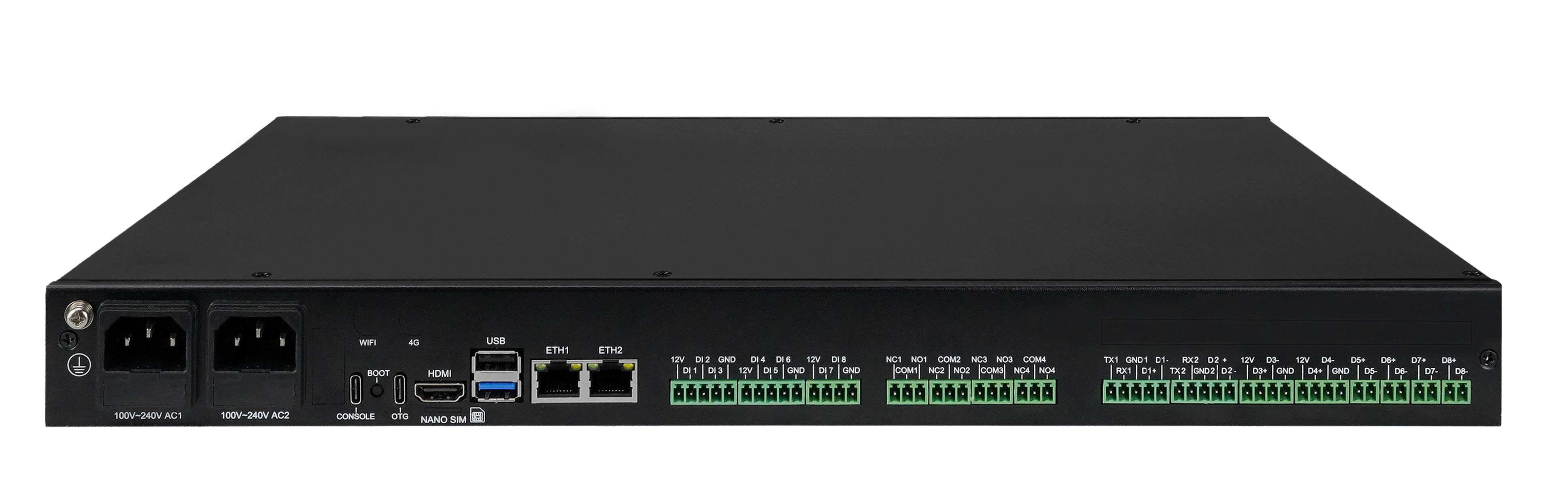

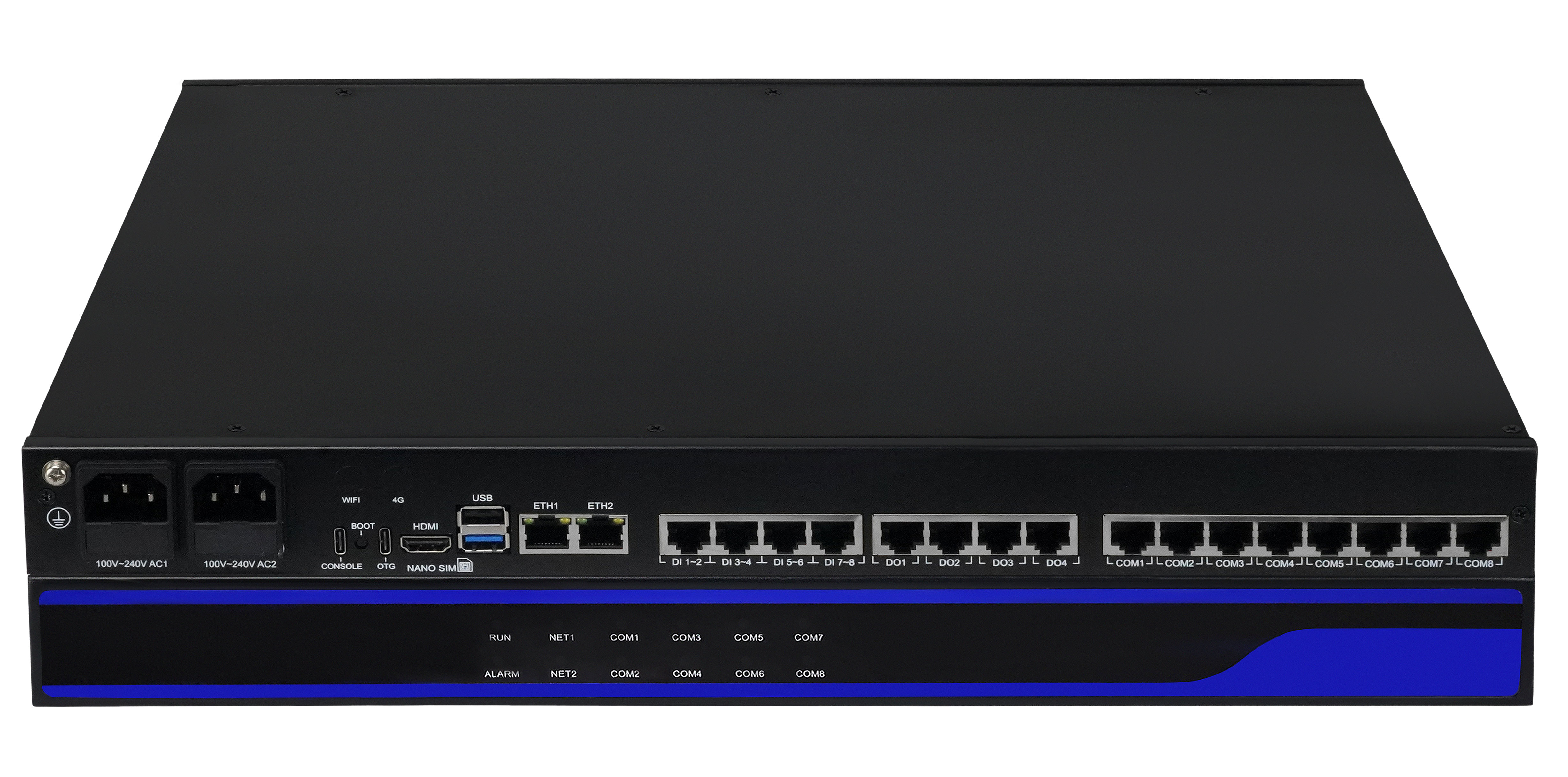

Installation And Commissioning Guide for Embedded Integrated Monitoring Host

1 Product Introduction and Features
The embedded integrated monitoring host is a next-generation multifunctional ARM-based intelligent monitoring system specifically designed for critical applications such as energy storage, IoT, and data centers. It supports data acquisition, storage, and coordinated control, replacing manual inspections to enable unattended operation, thereby significantly enhancing operational efficiency and reducing overall management costs.

Core Product Advantages:

1. With a decade of deep expertise in ARM-based embedded monitoring, our hands-on experience enables precision-driven hardware design.
2. Powered by the native embedded Ubuntu system, it is immune to virus infections and operates with secure and stable performance.
3. Highly integrated hardware design simplifies on-site construction and enables efficient, convenient project deployment.
4. Fanless architecture + high-performance CPU, energy-efficient design with low power consumption, ensuring reliable long-term operation
5. Uses SD cards for local storage, offering flexible and convenient data retention
6. Equipped with multiple protective features including electromagnetic interference suppression, signal isolation, anti-reverse connection protection, and short-circuit prevention, ensuring more stable equipment operation.

Availability:

Quantity:



Inquire Add to Basket

Model:
SPD-212-5
Brand:
Speed

Product Description

Technical Parameters

	CPU	Four-core Cortex-A72 + four-core Cortex-A53, with a maximum frequency of 2.2 GHz
hardware configuration	Memory + Storage	8GB of RAM, 64GB of FLASH (4GB+32GB optional)
	USB	2 USB 2.0 ports
	Ethernet port	Two 1000/M network ports (single network port optional)
	Serial Port	2 232/485 interfaces, 6 RS485 serial ports
	CONSOLE	1 USB Type-C debugging serial port
	IO channel	8DI, 4DO (an optional expansion card supporting 8DI/4DO functionality and an 8-channel 485 expansion card)
	power output	Bus 6 (total capacity 20A), DC 12V
	NPU	6TOPS* RKNN
	4G full-network compatibility	Optional
Work Conditions	power input	2 channels, 220V (1 channel optional)
	power dissipation	< 19 W
	ambient temperature	-20℃～55℃
	ambient humidity	10%–90% relative humidity (RH), no condensation
EMC metric	electrostatic protection	Contact discharge: ±6 kV; Air discharge: ±8 kV
EMC metric	EFT protect	±2KV
External Shape Structure	Length × Width × Height	440MM ×300MM ×44MM
way to install	1U standard rack front panel installation, wall-mounted installation
