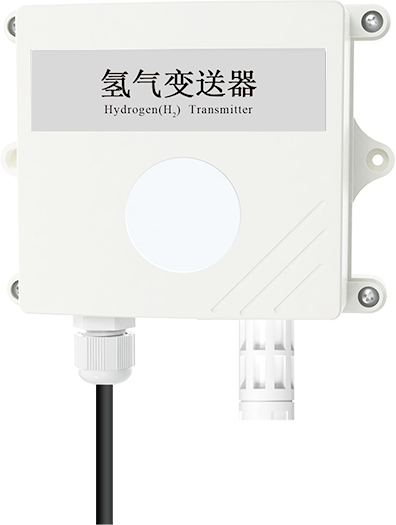

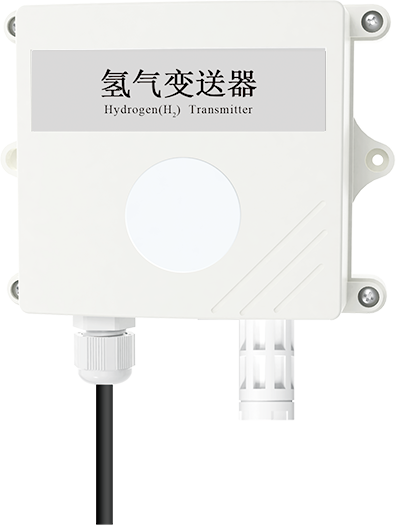

485 Type Hydrogen Temperature and Humidity Transmitter H2-N01-2-1000P-2-VL
I. Product Overview
The 485 type hydrogen temperature and humidity transmitter H2-N01-2-1000P-2-VL adopts an electrochemical hydrogen sensor, featuring rapid and sensitive response and strong anti-interference ability. Through our company's unique compensation algorithm and multi-segment standard gas calibration, it also has the characteristics of long service life, high precision, high repeatability and high stability. It is suitable for places where hydrogen leakage is likely and real-time concentration monitoring is required. The device is powered by a wide range of 10-30V DC and has a 485 signal output with a standard ModBus-RTU communication protocol, with a maximum communication distance of 2000 meters.
II. Product Features
1. High stability: Industrial-grade electronic components, strong anti-interference ability, long service life and high stability.
2. Measuring range: 0-1000ppm, 0-40000ppm.
3. Communication protocol: 485 communication interface, standard ModBus-RTU communication protocol, with a maximum communication distance of 2000 meters.
4. Installation method: Wall-mounted waterproof housing, high protection level, suitable for outdoor or harsh environments, wall-mounted installation.
5. Display screen: Optional high-quality OLED display screen, allowing on-site viewing of values.
III. Product Parameters
1. Product size: 110*85*44 mm.
2. Working voltage: 10-30V DC.
3. Power consumption: 0.9W.
4. Interface type: 485 communication, standard ModBus communication protocol.
5. Measuring range: 0-1000ppm, 0-40000ppm.
6. Measuring accuracy: Hydrogen ±5%FS, temperature ±0.5℃, humidity ±3%RH.
7. Stability: ≤2% signal value/month.
8. Response time: 1000ppm: ≤70s, 40000ppm: ≤60s.
9. Working environment: -20℃~+50℃, 15%RH~95%RH (non-condensing).
IV. Product Application Scenarios
1. Covering enterprises: Mainly applied in power, production and other fields.
2. Application scenarios: Applied in fuel cell vehicles, hydrogen power stations and other systems to ensure the safe and stable operation of the system. It can also be used for temperature monitoring of hydrogen storage facilities such as hydrogen storage tanks and hydrogen pipelines.
