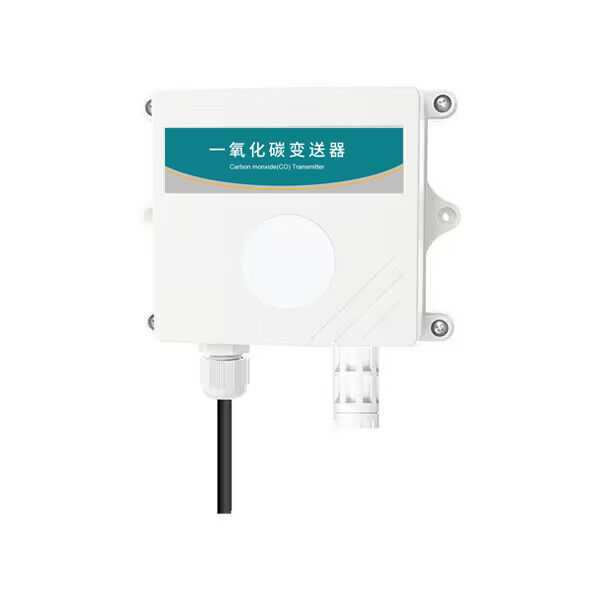

485-type carbon monoxide temperature and humidity transmitter CO-N01-2-1000P-2-VL
I. Product Overview
485-type carbon monoxide temperature and humidity transmitter CO-N01-2-1000P-2-VL, equipped with an electrochemical carbon monoxide sensor, features rapid and sensitive response, strong anti-interference ability. Through our company's unique compensation algorithm and multi-stage standard gas calibration, it also has the characteristics of long life, high precision, high repeatability and high stability. It is suitable for occasions where carbon monoxide concentration needs to be detected, such as underground parking lots, garages, workshops, and enclosed living places. The equipment is powered by a wide voltage range of 10-30V DC, with 485 signal output, and follows the standard ModBus-RTU communication protocol. The communication distance can reach up to 2000 meters.
II. Product Features
1. High stability: Industrial-grade electronic components, strong anti-interference ability, long lifespan and high stability.
2. Measurement range: 0-1000ppm (default), 0-2000ppm.
3. Communication protocol: 485 communication interface, standard ModBus-RTU communication protocol, communication distance up to 2000 meters.
4. Installation method: Wall-mounted waterproof case, high protection level, suitable for outdoor or harsh environments, wall-mounted installation.
5. Display screen: Optional high-quality OLED display, allowing on-site viewing of values.
III. Product Parameters
1. Product size: 110*85*44 mm.
2. Working voltage: 10-30V DC.
3. Power loss: 0.18W.
4. Interface type: 485 communication, standard ModBus communication protocol.
5. Measurement range: 0-1000ppm, 0-2000ppm, other measurement ranges can also be customized.
6. Measurement accuracy: CO ±5ppm or ±10%, temperature ±0.5℃, humidity ±3%RH.
7. Stability: ≤2% signal value/month.
8. Response time: ≤30s, preheating time ≥5min.
9. Working environment: -20℃~+50℃, 15%RH~95%RH (non-condensation).
IV. Product Application Scenarios
1. Covering enterprises: Mainly applied in warehouses, workshops, production and other fields.
2. Application scenarios: Applied in underground parking lots, garages, workshops, enclosed living places and other occasions where carbon monoxide concentration needs to be detected.
