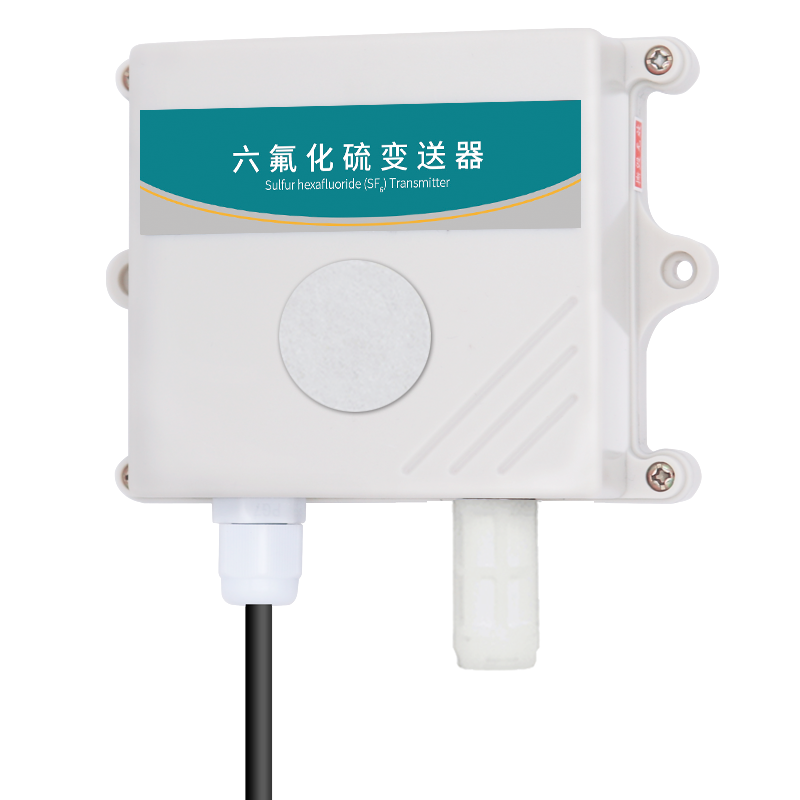

Sulfur Hexafluoride Transmitter 485 Type SF6-N01-2-VL
I. Product Overview
The sulfur hexafluoride transmitter 485 type SF6-N01-2-VL uses the NDIR principle for detection. It features a high-quality infrared light source and has undergone standard gas calibration. It has the characteristics of rapid response, strong anti-interference ability, long lifespan, high repeatability, and high stability. The device outputs 485 signals, uses standard ModBus-RTU communication protocol, and the ModBus address can be set, the baud rate can be changed, and the communication distance can reach up to 2000 meters. It can also be equipped with a high-quality OLED display, allowing direct on-site viewing of values and clear display even at night.
II. Product Features
1. High Stability: Industrial-grade electronic components, rapid response, strong anti-interference ability, long lifespan, high repeatability, and high stability. Stability ≤ 2% signal value per month.
2. Range: Range 0-1000 ppm.
3. Communication Protocol: 485 communication interface, standard ModBus-RTU communication protocol, communication distance up to 2000 meters.
4. Display Screen: Optional high-quality OLED display for direct on-site viewing of values.
5. Installation Method: The product adopts a wall-mounted waterproof shell, which is easy to install and has a high protection level, suitable for harsh on-site environments.
III. Product Parameters
1. Product Size: 110×85×42 mm.
2. Working Voltage: 10-30V DC.
3. Power Loss: 0.95W.
4. Interface Type: 485 communication, standard ModBus communication protocol.
5. Measurement Range: 0-1000 ppm.
6. Measurement Accuracy: 0-1000 ppm: ±10% (@500 ppm, 60% RH, 25℃),
0-2000 ppm: ±10% (@2000 ppm, 60% RH, 25℃).
7. Resolution: 1 ppm.
8. Pressure Range: 90-110 kPa.
9. Response Time: ≤ 30s.
10. Working Environment: -20℃~+50℃, 0% RH~95% RH (non-condensation).
IV. Product Application Scenarios
1. Covered Industries: Mainly applied in the power industry.
