High Stability: This product has high sensitivity, high measurement accuracy, and good stability.

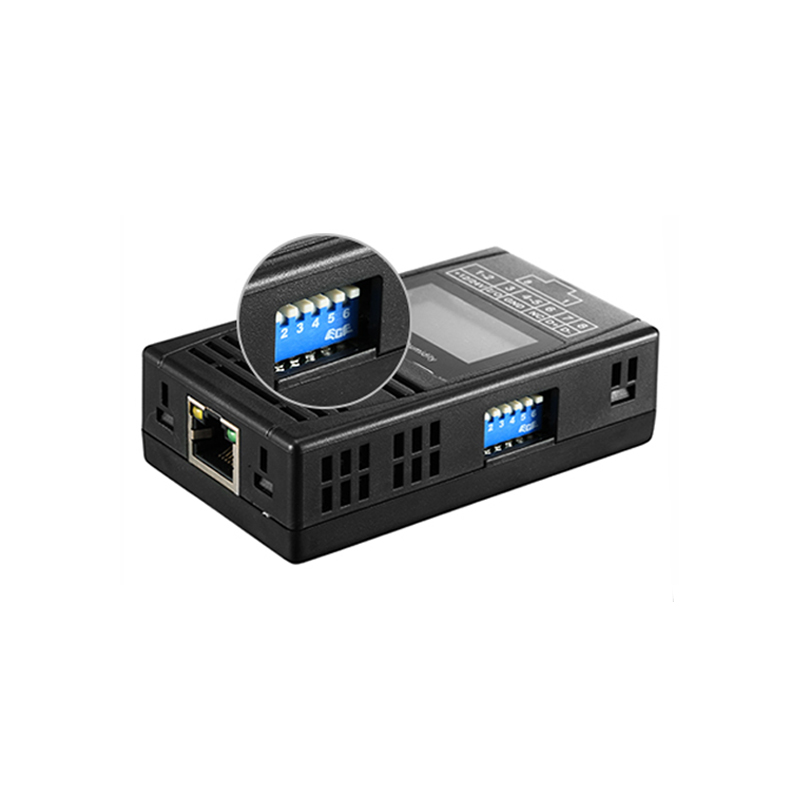

Interface Type: Dual RJ45 interface, standard serial port RS485 communication.
Installation: Wall-mounted installation, magnetic attachment installation method.

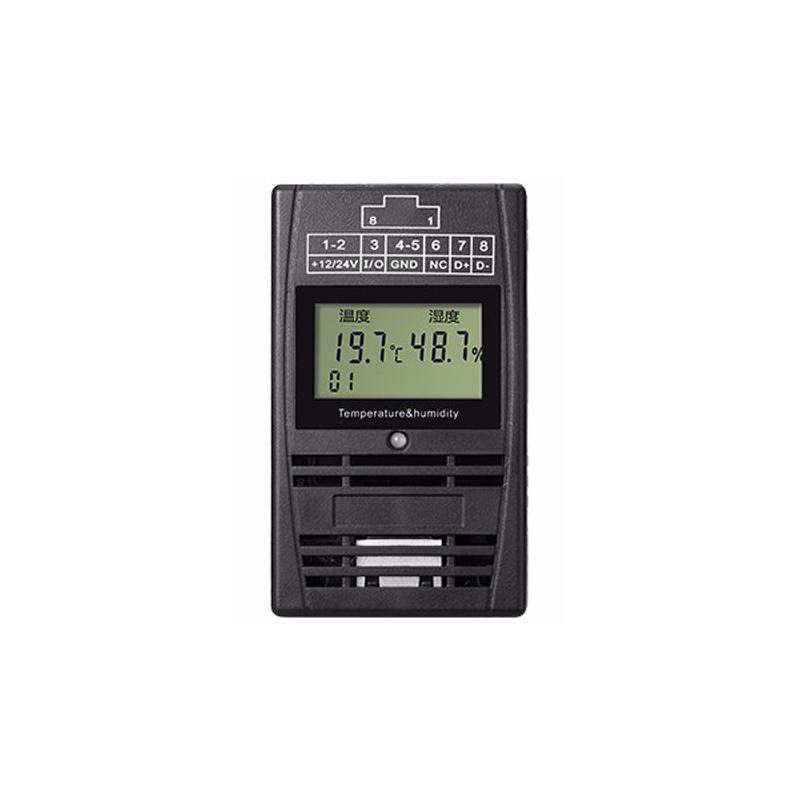

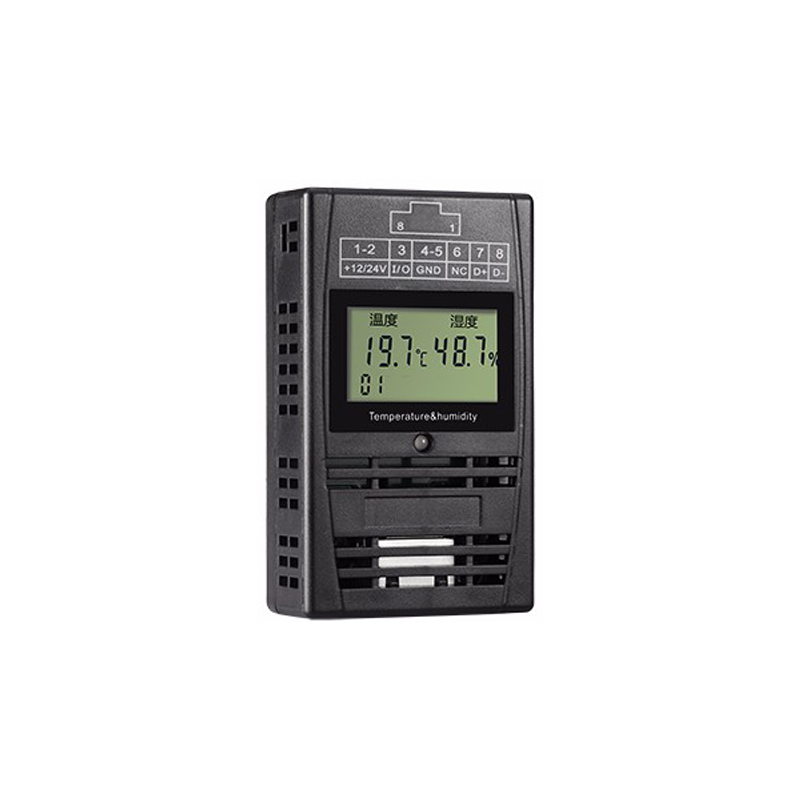

Large Screen Display: LCD/OLED large screen display, intuitive observation and simple operation.
Service Life: Double-sided gold-plated circuit board, not prone to oxidation, maintaining long-term precise use, with a long service life.
| Parameter Item | Specification |
|---|---|
| Product Size | 855025mm (lengthwidthheight) |
| Working Voltage | 9-30V DC |
| Measurement Range | Temperature -10℃～70℃, ±0.3℃; Humidity 5%-95%RH, ±3%RH |
| Interface Type | RS485 interface |
| Operating Environment | Working temperature -10℃～60℃ |
| Effective Area | 10-30㎡ |
| Communication Protocol | Modbus_RTU |
| Baud Rate | 2400, 4800, 9600, 19200bps |
Covering industries: finance, communication, government affairs, transportation, logistics, factories, warehouses, medicine, etc.
Application Scenarios: Widely used in computer network data centers, communication data centers, IDC data centers, laboratories, archives, libraries, offices, power stations, substations, residential distribution stations, UPS data centers, battery group data centers, outdoor cabinets, unmanned sites, ammunition depots, medicine warehouses, etc. for temperature and humidity measurement in various scenarios.
High Stability: This product has high sensitivity, high measurement accuracy, and good stability.
Interface Type: Dual RJ45 interface, standard serial port RS485 communication.
Installation: Wall-mounted installation, magnetic attachment installation method.
Large Screen Display: LCD/OLED large screen display, intuitive observation and simple operation.
Service Life: Double-sided gold-plated circuit board, not prone to oxidation, maintaining long-term precise use, with a long service life.
| Parameter Item | Specification |
|---|---|
| Product Size | 855025mm (lengthwidthheight) |
| Working Voltage | 9-30V DC |
| Measurement Range | Temperature -10℃～70℃, ±0.3℃; Humidity 5%-95%RH, ±3%RH |
| Interface Type | RS485 interface |
| Operating Environment | Working temperature -10℃～60℃ |
| Effective Area | 10-30㎡ |
| Communication Protocol | Modbus_RTU |
| Baud Rate | 2400, 4800, 9600, 19200bps |
Covering industries: finance, communication, government affairs, transportation, logistics, factories, warehouses, medicine, etc.
Application Scenarios: Widely used in computer network data centers, communication data centers, IDC data centers, laboratories, archives, libraries, offices, power stations, substations, residential distribution stations, UPS data centers, battery group data centers, outdoor cabinets, unmanned sites, ammunition depots, medicine warehouses, etc. for temperature and humidity measurement in various scenarios.
