SPD-GZ
Speed
I. Product Overview

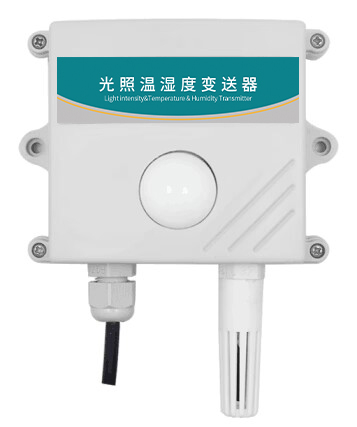

The SPD-GZ tri-functional transmitter for illuminance, temperature and humidity is a high-precision light sensor transmitter with an output value unit of Lux. The device features a wall-mounted waterproof housing and is installed in a wall-mounted manner with a protection level of IP65. It supports 485 communication and the standard ModBus-RTU communication protocol. The communication address and baud rate can be set, with a maximum communication distance of 2000 meters. The product is powered by a wide voltage range of 10-30V and can be applied in agricultural greenhouses, flower cultivation greenhouses, agricultural fields, and electronic equipment production lines where illuminance monitoring is required.
II. Product Features
1. High Stability: Industrial-grade electronic components, strong anti-interference ability, long service life and high stability.
2. Measurement Range: High-precision illuminance detection measurement range of 0-60,000 Lux and 0-200,000 Lux are available.
3. Communication Protocol: 485 communication interface, standard ModBus-RTU communication protocol, with a maximum communication distance of 2000 meters.
4. Installation Method: Wall-mounted waterproof housing, high protection level, suitable for outdoor or harsh on-site environments, wall-mounted installation.
III. Product Parameters
1. Product Dimensions: 110*85*44 mm.
2. Operating Voltage: 10-30V DC.
3. Power Consumption: 0.4W.
4. Interface Type: 485 communication, standard ModBus communication protocol.
5. Measurement Range: 0-65535 Lux, 0-200,000 Lux.
6. Measurement Accuracy: Illuminance ±7%, high-precision illuminance ±4% (at 25℃). Temperature ±0.5℃, humidity ±3% RH.
7. Stability: Illuminance intensity ≤5%/y, temperature ≤0.1℃/y, humidity ≤1%/y.
8. Response Time: Illuminance response 0.1s, temperature ≤18s, humidity ≤6s.
9. Operating Environment: -40℃ to +60℃, 0% RH to 95% RH (non-condensing).
IV. Product Application Scenarios
1. Target Industries: Mainly applied in agriculture, production and other fields.
2. Application Scenarios: Applied in agricultural greenhouses, flower cultivation greenhouses, agricultural fields, electronic equipment production lines and other scenarios where illuminance monitoring is required.
