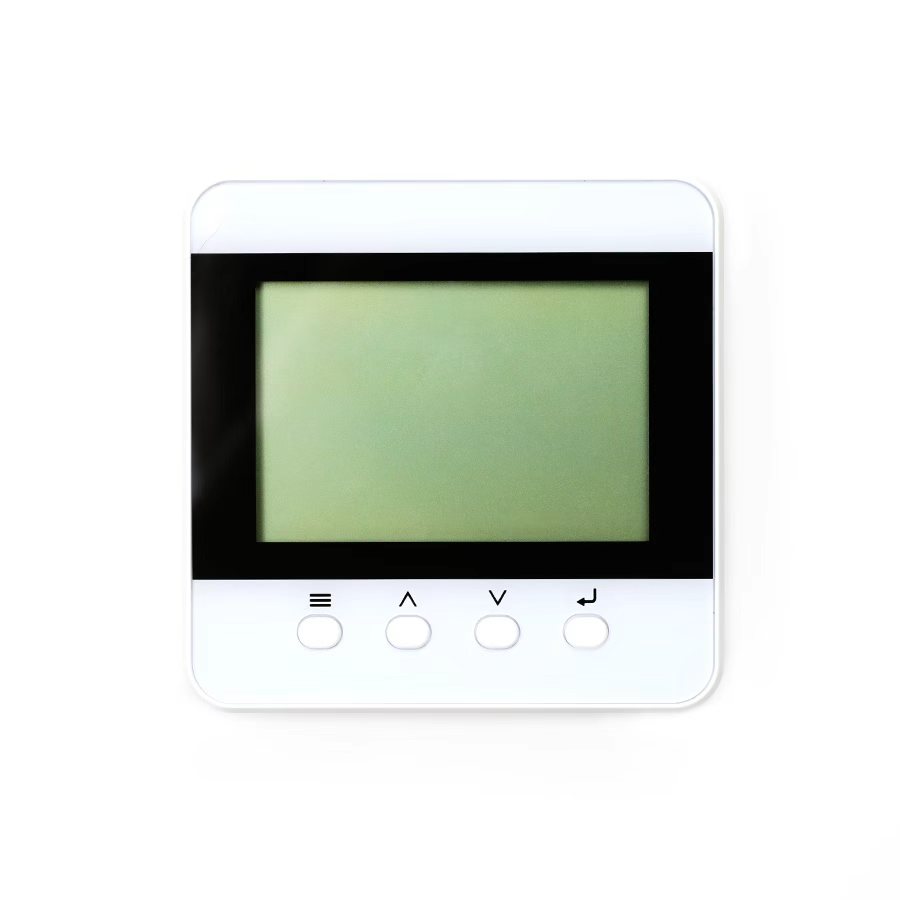

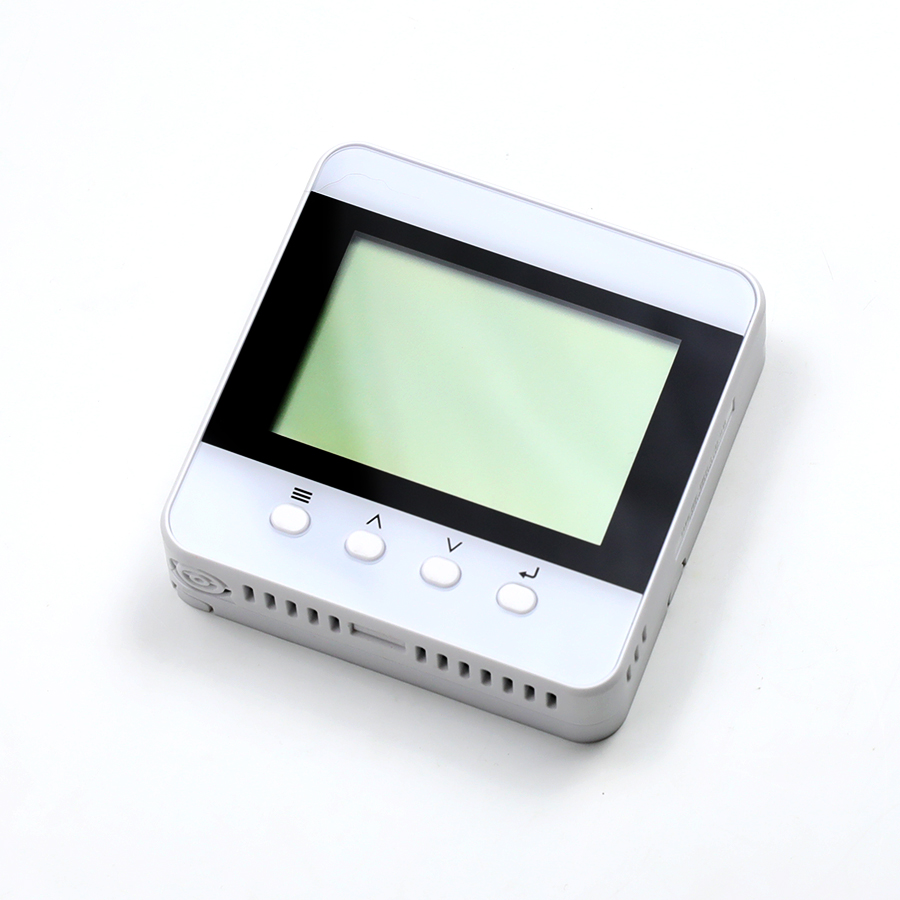

POE-powered Ethernet Temperature And Humidity Sensor SPD-HT485-TCP

The POE-powered Ethernet Temperature and Humidity Sensor SPD-HT485-TCP (hereinafter referred to as the controller) can convert the temperature and humidity of the surrounding environment into digital signals and collect temperature and humidity data over long distances through an Ethernet communication network, achieving centralized monitoring of temperature and humidity data. Its main components are all made of imported chips and processors from abroad, strictly controlling the quality of the product from the source materials. It can be used for multi-point monitoring, hybrid networking, and communication with the upper computer system. This product can be widely applied in industrial sites, farms, plantations, offices, supermarkets, archives, production workshops, warehouses, computer rooms, construction sites, automobiles, consumer goods, meteorological stations, dehumidifiers, testing and inspection equipment, automatic control, household appliances, medical care, and other temperature and humidity measurement scenarios.

Availability:

Quantity:



Inquire Add to Basket

Model:
SPD-HT485-TCP
Brand:
Speed

Product Description

Product Parameters

1. Product Dimensions: 86mm * 86mm * 24mm (length * width * height).

2. Operating Voltage: 9-30V DC / POE: 48V DC.

3. Power Consumption: <0.5W.

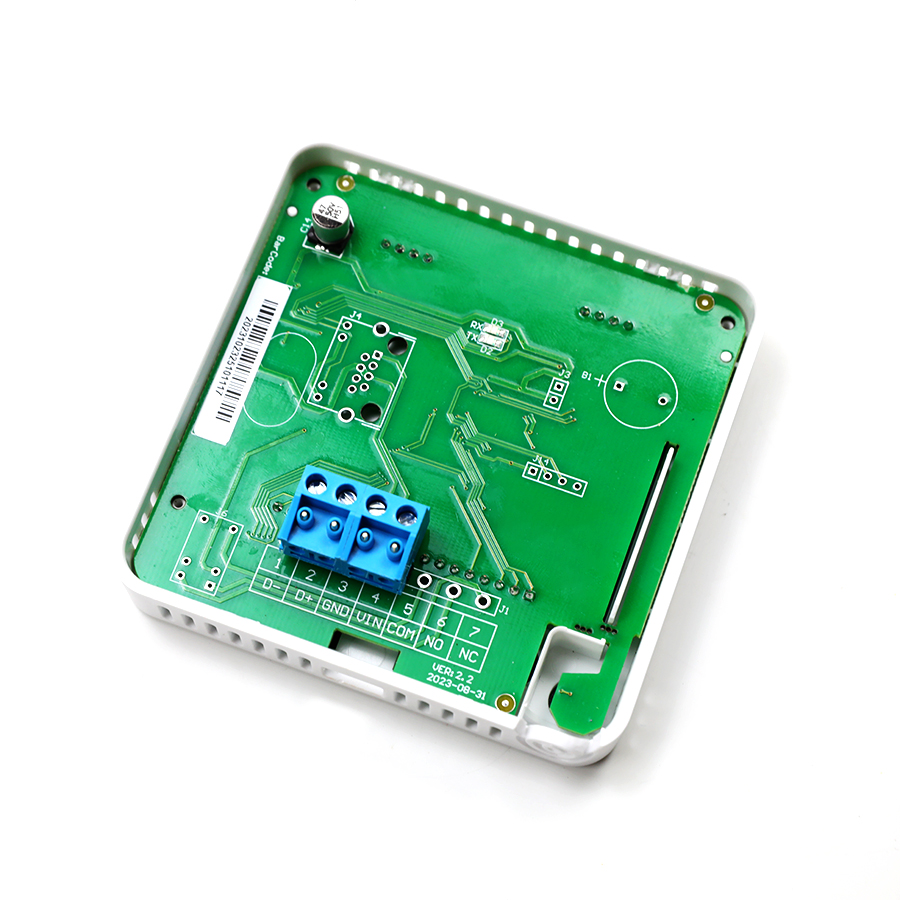

4. Interface Types: Ethernet RJ485 interface, Modbus-TCP protocol; 485 terminal interface, Modbus-RTU protocol.

5. Operating Environment: Operating temperature -20~70℃.

6. Detection Range: Temperature -10~55℃, ±0.3℃; Humidity 0-100%RH, ±3.5%RH.

7. Baud Rate: 1200~9600bps, default 9600bps.

Product Application Scenarios

1. Industries Covered: Finance, communication, government, transportation, logistics, factories, warehouses, medicine, and many other industries.

2. Application Scenarios: Computer rooms, warehouses, distribution rooms, factories, workshops, laboratories, farms, plantations, offices, construction sites, consumer goods, meteorological stations, automatic control, and other temperature and humidity measurement scenarios, such as computer room monitoring, power monitoring, security monitoring systems, anti-theft alarm systems, and power environment monitoring systems.
