SPD-H01
Speed

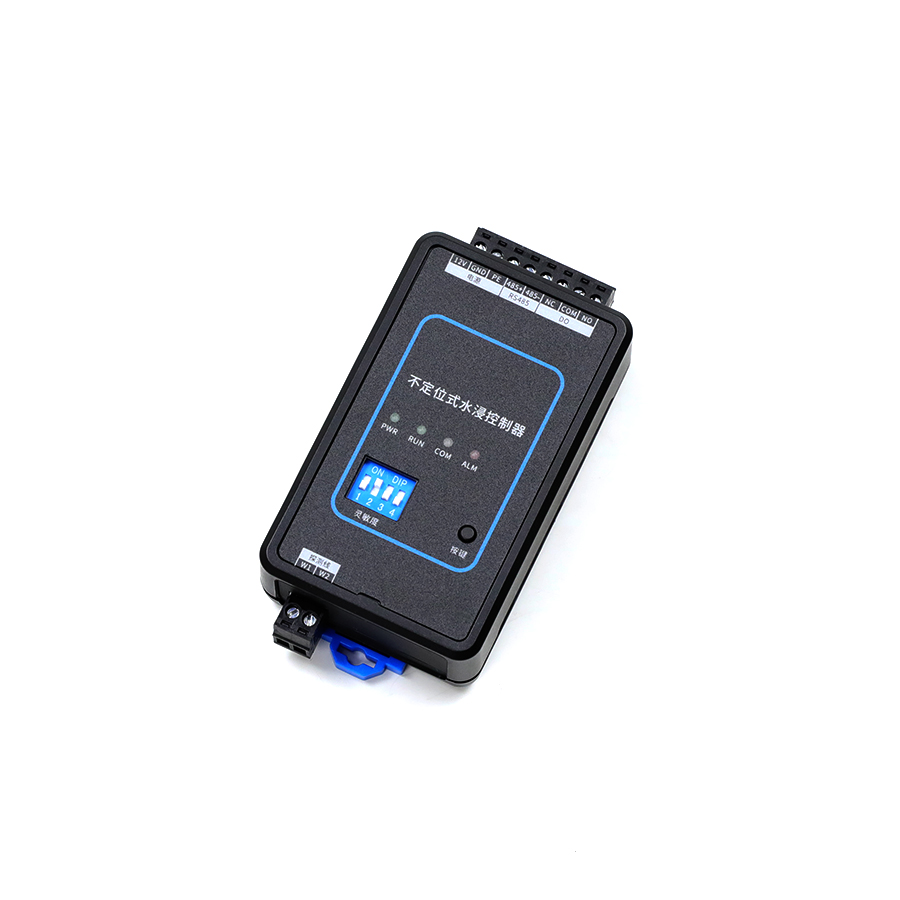

I. Product Overview
The unpositioned leak detection controller SPD-H01 can be remotely collected through the RS485 serial port and supports the standard Modbus RTU communication protocol. It has 1 relay output and can be selected with different length specifications of accessory packages according to the space size of different monitoring areas. It is suitable for various occasions where water leakage detection is required, such as libraries, museums, archives, logistics, airports, oil depots, pipeline corridors, factory warehouses, data centers, etc.
II. Product Features
1. High Stability: Uses industrial-grade electronic components to ensure high sensitivity during detection and reduce false alarms caused by various external factors.
2. Installation and Construction: The controller is suitable for standard DIN35mm industrial rail installation. All on-site wiring can be easily completed through terminal blocks, making the installation and construction convenient.
3. Comprehensive Functionality: Provides 1 RS485 interface, supports the standard Modbus RTU protocol, has a watchdog design, is stable and reliable without system failure, automatically resets in case of abnormality, supports 4 levels of water leakage sensitivity adjustment, and each port supports overvoltage and overcurrent protection, anti-reverse connection and incorrect connection protection, and built-in buzzer.
4. Service Life: Industrial-grade hardware design, having gone through several technical generations, with its outstanding reliability, has a long service life.

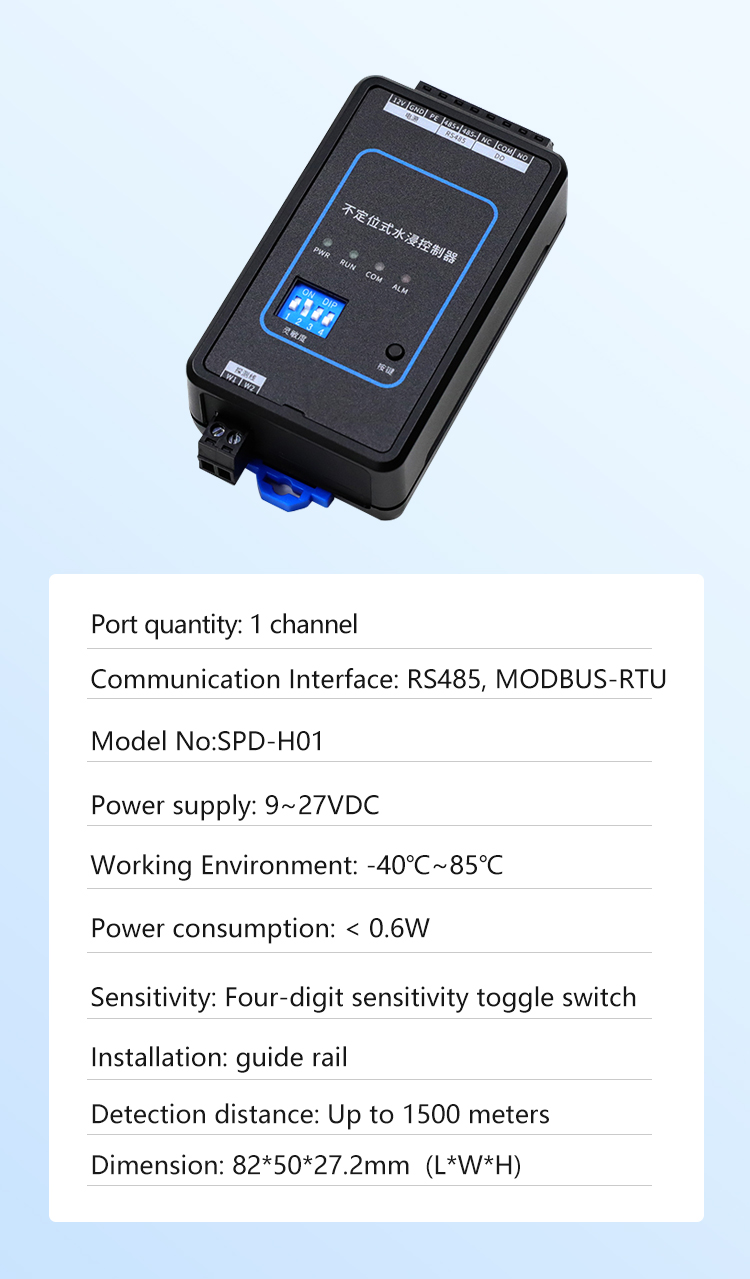

III. Product Parameters

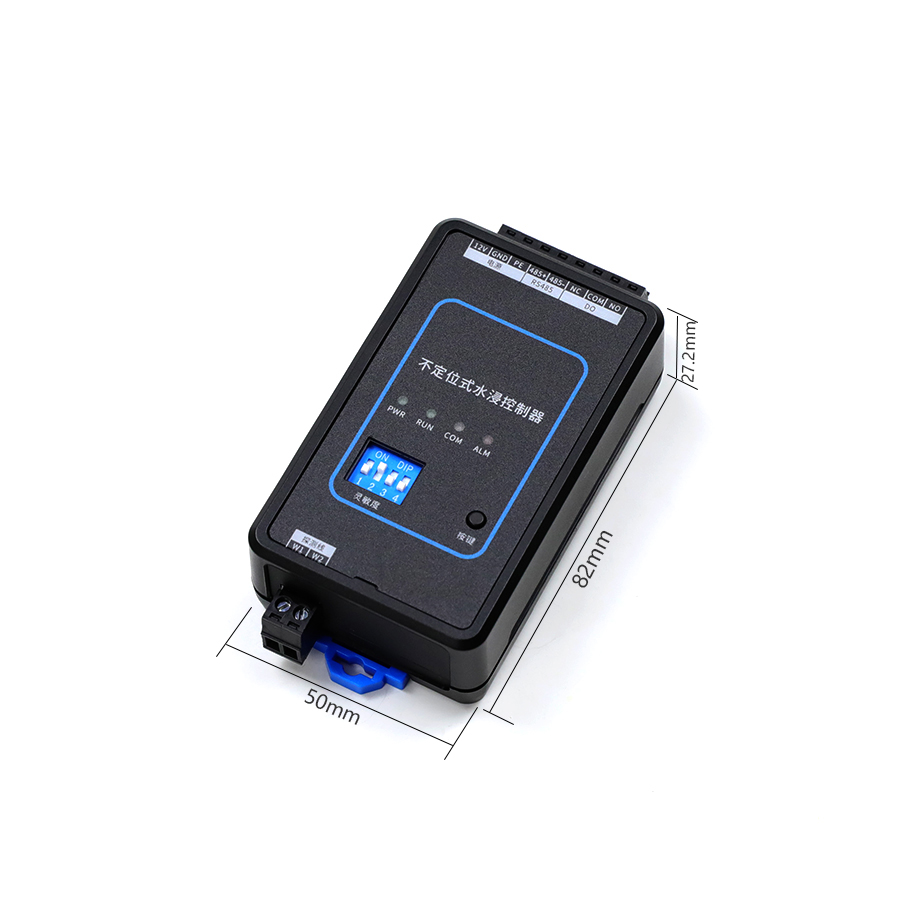

1. Product Size: 82*50*27 mm.
2. Working Voltage: 9-27V DC, current ≤ 50mA@12VDC.
3. Power Loss: <0.6W.
4. Interface Type: RS485, 3.81 phoenix terminals, DO output type is C-type relay.
5. Sensitivity: 4 levels adjustable.
6. Communication Protocol: Standard Modbus RTU protocol.
7. Working Environment: -40℃～85℃, 5%～95%RH, no condensation.
7. Protection Form: PPTC + TVS, 600W lightning protection, 30V/500mA overvoltage/overcurrent protection.
IV. Product Application Scenarios
1. Covering enterprises: finance, communication, government affairs, transportation, logistics, factories, warehouses, medicine, etc. of many industries.
2. Application Scenarios: computer rooms, warehouses, power distribution rooms, factories, workshops, laboratories, etc., such as computer room environment monitoring, auxiliary control system in power distribution rooms, power environment monitoring system in archive warehouses, etc.
