PH-N01-2-VL
Speed

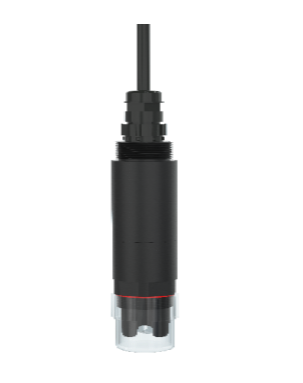

485 Integrated pH Transmitter PH-N01-2-VL
I. Product Overview
The 485 Integrated pH Transmitter PH-N01-2-VL is a device for measuring the pH value (hydrogen ion concentration index, acidity and alkalinity) of solutions. It features automatic temperature compensation, with the option to switch between automatic and manual temperature compensation. It adopts an integrated design, making it lighter and more convenient to use, and has a waterproof rating of IP68. This product is suitable for use in weakly acidic and weakly alkaline environments without corrosive substances, such as industrial wastewater, domestic wastewater, agriculture, and aquaculture industries.
II. Product Features
1. High Stability: Utilizes industrial-grade electronic components, offering strong anti-interference ability, long service life, and high stability.
2. Measurement Range: pH measurement range of 0-14 pH, with a resolution of 0.01 pH.
3. Communication Protocol: 485 communication interface, standard ModBus-RTU communication protocol, with a maximum communication distance of 2000 meters.
4. Waterproof Rating: IP68.
5. Installation and Use: Integrated design, lightweight structure, and convenient usage.
III. Product Parameters
1. Product Dimensions: 266*30*28 mm.
2. Operating Voltage: 7-30V DC.
3. Average Power Consumption: 0.3W.
4. Interface Type: 485 communication, standard ModBus communication protocol.
5. Measurement Range: 0-14.00 pH, resolution 0.01 pH; temperature 0-60°C, resolution 0.1°C.
6. Measurement Accuracy: pH ±0.15 pH, temperature ±0.5°C.
7. Waterproof Rating: IP68.
8. Component Temperature Range: 0-80°C.
9. Pressure Resistance Range: 0.6MPa.
IV. Product Application Scenarios
1. Target Industries: Mainly applied in agriculture, industry, and other fields.
2. Application Scenarios: Suitable for use in weakly acidic and weakly alkaline environments without corrosive substances, such as industrial wastewater, domestic wastewater, agriculture, and aquaculture industries.
