485 Type CO2 Transmitter CO2-N01-2-VL

485 Type CO2 Transmitter CO2-N01-2-VL

I. Product Overview

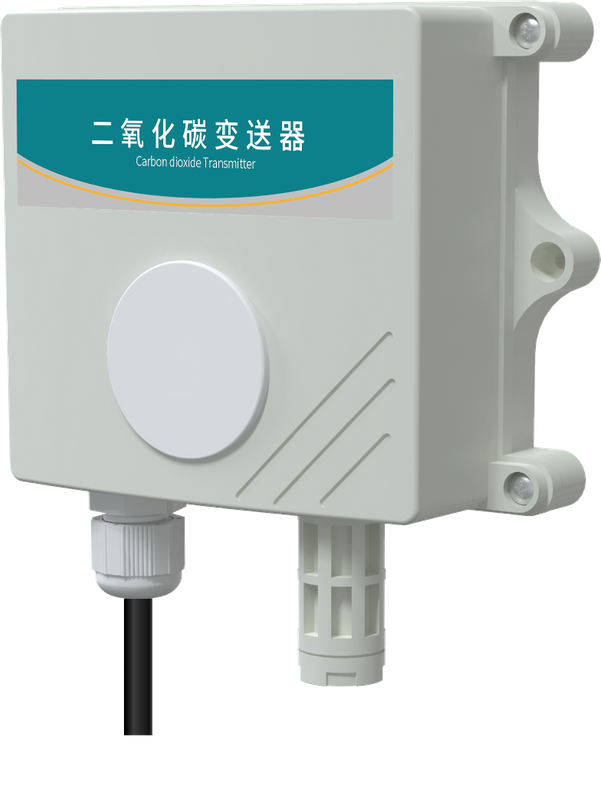

The 485 type CO2 transmitter CO2-N01-2-VL adopts an electrochemical CO2 sensor, featuring rapid and sensitive response and strong anti-interference ability. With our company's unique compensation algorithm and multi-segment standard gas calibration, it also has the characteristics of long service life, high precision, high repeatability and high stability. It is suitable for applications such as agricultural greenhouses and flower cultivation where CO2 and temperature-humidity monitoring are required.

II. Product Features

1. High stability: Industrial-grade electronic components, strong anti-interference ability, long service life and high stability.

2. Measuring range: 0-2000 ppm (default), 0-5000 ppm.

3. Communication protocol: 485 communication interface, standard ModBus-RTU communication protocol, with a maximum communication distance of 2000 meters.

4. Installation method: Wall-mounted waterproof housing, high protection level, suitable for outdoor or harsh environments, wall-mounted installation.

5. Display screen: Optional high-quality OLED display, allowing on-site viewing of values.

III. Product Parameters

1. Product size: 110*85*44 mm.

2. Working voltage: 12-24V DC.

3. Average power consumption: <60mA.

4. Interface type: 485 communication, standard ModBus communication protocol.

5. Measuring range: 0-2000 ppm (default), 0-5000 ppm, other ranges can be customized.

6. Measurement accuracy: CO2 accuracy 50ppm or ±5%F.S, temperature ±0.5℃, humidity ±3%RH.

7. Resolution: 1ppm.

8. Preheating time: < 1min.

9. Temperature and humidity range: -40°C-80°C (customizable), 0%RH-100%RH.

IV. Product Application Scenarios

1. Target industries: Mainly applied in agriculture, workshops, production and other fields.

2. Application scenarios: Suitable for applications such as agricultural greenhouses and flower cultivation where CO2 and temperature-humidity monitoring are required.
