CH2O-N01-2-5P-2-VL
Speed

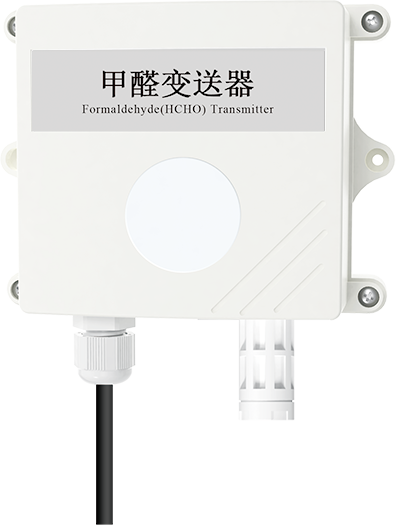

485 Type Formaldehyde Transmitter CH2O-N01-2-5P-2-VL
I. Product Overview
The 485 type formaldehyde transmitter CH2O-N01-2-5P-2-VL features strong safety, fast response speed, and strong anti-interference ability. Through our company's unique compensation algorithm and multi-segment standard gas calibration, it also has the characteristics of long service life, high precision, high repeatability, and high stability. It is suitable for real-time monitoring of formaldehyde concentration in industries such as petroleum, metallurgy, power, medicine, factories, and workshops.
II. Product Features
1. High stability: Industrial-grade electronic components, strong anti-interference ability, long service life, and high stability.
2. Measuring range: 0-5 ppm, other ranges can be customized.
3. Communication protocol: 485 communication interface, standard ModBus-RTU communication protocol.
4. Installation method: Install in a wind and rain sheltered environment, 90 degrees vertical to the ground wall-mounted, keep the sensor's ventilation holes facing forward, and prevent water from entering.
5. Display screen: Optional high-quality OLED display screen, allowing on-site viewing of values.
III. Product Parameters
1. Product size: 110*85*44 mm.
2. Working voltage: 12-24V DC.
3. Power consumption: 0.15W.
4. Interface type: 485 communication, standard ModBus communication protocol.
5. Measuring range: 0-5ppm.
6. Measuring accuracy: ≤±2% (25℃).
7. Working pressure: 0.9-1.1atm.
8. Response time: ≤15s.
9. Working environment: -0℃~+50℃, 15%RH~90%RH (non-condensing).
IV. Product Application Scenarios
1. Covered enterprises: Mainly applied in factories, workshops, power, petroleum, and other fields.
2. Application scenarios: Suitable for real-time monitoring of formaldehyde concentration in industries such as petroleum, metallurgy, power, medicine, factories, and workshops.
